3X GRL8-02 Liquid Control Relay Level Control Relay 10A ACDC24V-240V Wide Range Voltage Water Pump Relay
Product details
| Management number | 237889423 | Release Date | 2026/07/11 | List Price | $23.18 | Model Number | 237889423 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Adjustable time delay on the output (0.1 - 10s).<br>Galvanically separated supply voltage 24-240V.<br>size:90 x 18 x 64MM<br>Material:ABS<br>colour:white<br><br>Package Contents:<br>3 x Relay<br>3 x Instructions<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

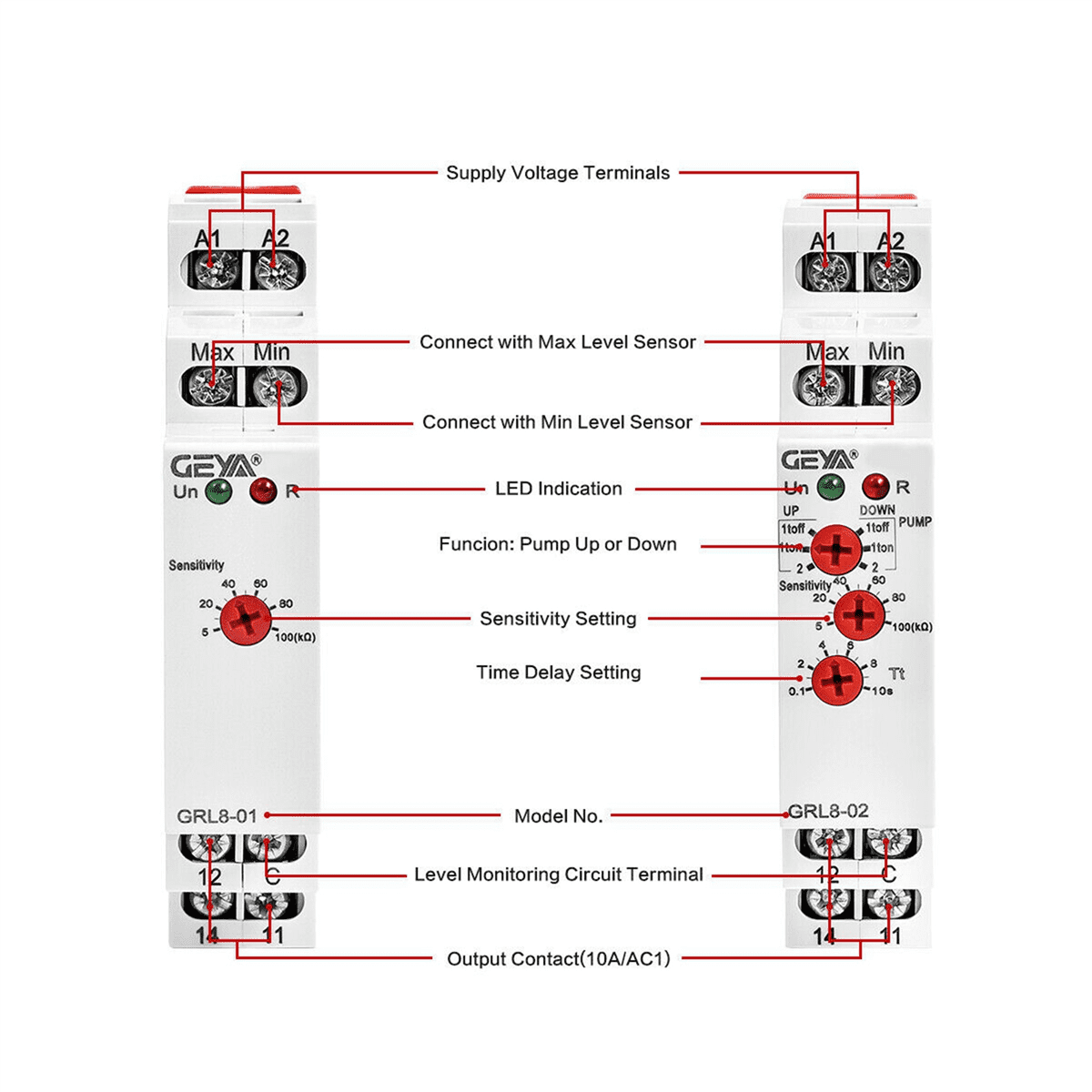

- Designed for monitoring level in , basins, reservoirs, tanks.
- Sensitivity adjustable by a potentiometer (5-100kΩ).
- Relay status is indicated by LED.
- Choice of function PUMP UP, PUMP DOWN.

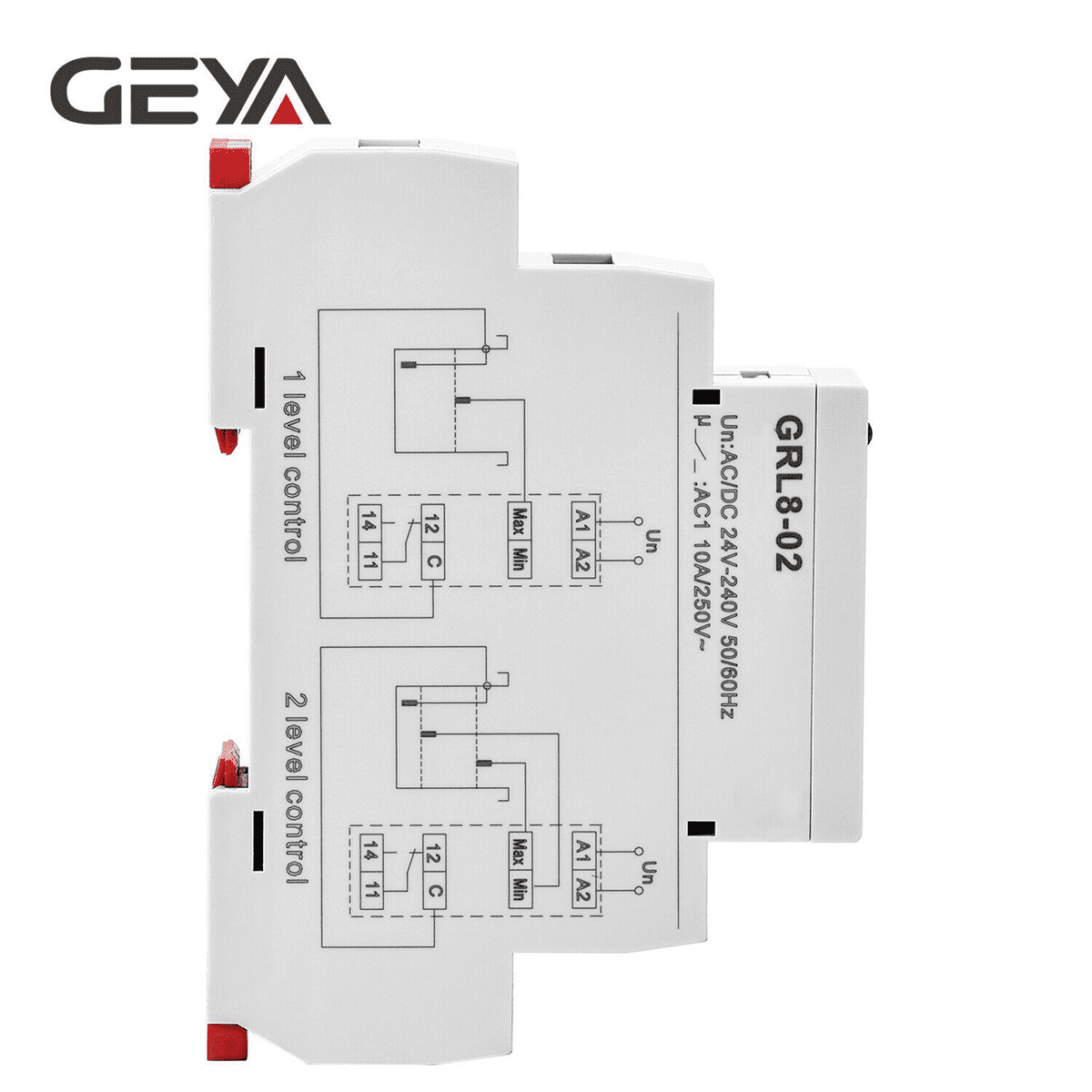

- In one device you can choose the following configurations:2 level control mode, 1 level control mode.
| Amps | 10 Amps |
|---|---|
| Input voltage | 24 V |
| Electrical system relay type | Time Delay |
| Brand | Unbranded |
| Features | Adjustable, LED Indicator |

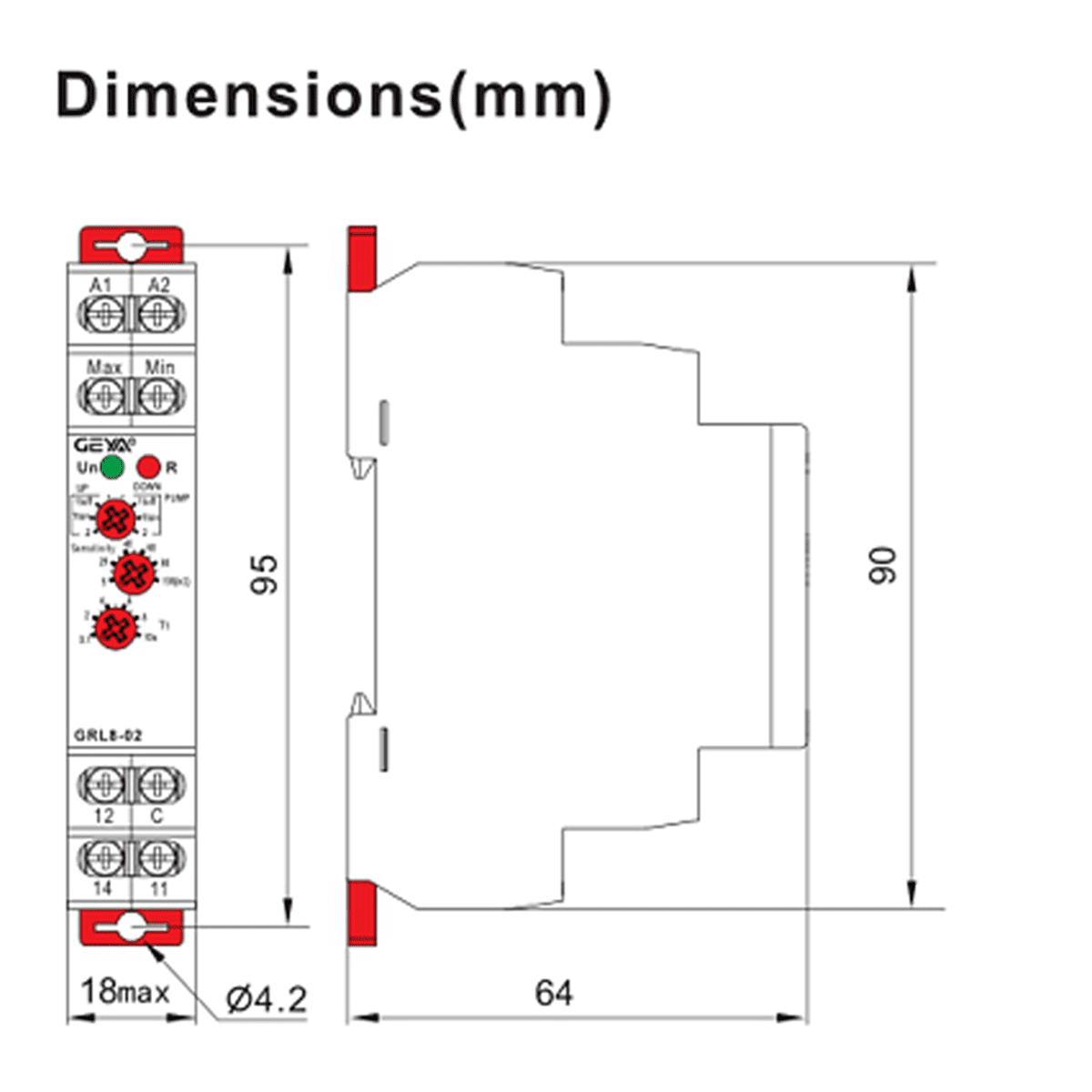

| Size | 90 x 18 x 64MM |
| Has written warranty | No |
| Model | GRL8-02 |
